What Is a Cut-in Junction?

A cut-in junction, sometimes called a junction cut-in or property connection point (PCP), is the process of creating a new connection point from a building’s plumbing or sewer sideline into an existing sewer main. This junction allows wastewater from your property to safely and legally discharge into the public sewer network.

While the main sewer is maintained by Sydney Water, cut-in junctions fall under the works required by developers, builders or property owners as part of new builds, subdivisions or alteration projects.

In Sydney’s Minor Works Sewer regime, accredited constructors (like Zaoud Plumbing) are permitted to insert junctions into existing VC or PVC sewers under certain size and depth limits.

Why a Cut-in Junction May Be Required?

You are building a new house, granny flat or duplex and need a legal sewer connection to the main line.
Your subdivision or development requires additional connection points to the main sewer.
Your existing plumbing is being altered or extended, requiring a new junction location.
Your site plans or setbacks conflict with current connection points, so you must relocate or create a new junction.
Sydney Water or a Water Servicing Coordinator (WSC) mandates a new junction or cut-in as a condition of approval (for DA, Section 73 works, or minor works).

Our Cut-in Junction Services

Zaoud Plumbing, as a Sydney Water accredited constructor, offers full services for cut-in junctions with compliance, precision, and minimal disruption.

Initial review & design assessment

Review site drawings, sewer maps, pegout reports, and proposed building layout
Determine optimal junction location, alignment, depth, and access

2. Approval & coordination

Liaise with your Water Servicing Coordinator (WSC) or Sydney Water for junction approval
Submit design, offset and vertical alignment data for approval
Ensure any redundant connections are sealed properly in compliance with Sydney Water Minor Works rules

3. Site marking

Mark the exact cut location and offsets on the ground for reference

4. Trench works & exposure

Excavation to expose the existing sewer main in a controlled manner
Use shoring or trench safety measures where needed, especially in deep excavations or near adjacent infrastructure

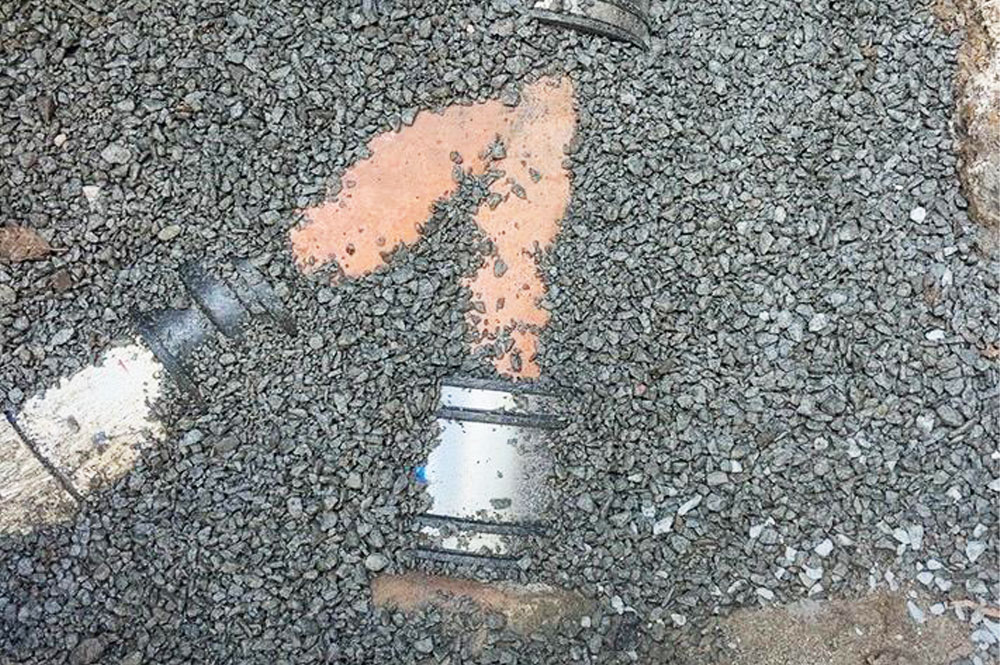

5. Junction cutting & insertion

Carefully cut into the sewer main per approved design. Use proper tools (e.g., saws, core drills) to avoid damage or debris falling into the pipe.
Install the junction fitting (e.g. saddle, T-piece), ensuring watertight seal and alignment.
Connect your sideline or property connection to the new junction using approved pipes, joints and gradient

6. Inspection

Coordinate with WSC or Sydney Water to inspect the junction and approve the works.
Provide as-constructed plans, test reports, and compliance documentation.

7. Backfill & surface restoration

Backfill carefully in layers (lifts), compacting per specification.
Temporary restoration services surface finishes such as paving, lawn, driveway, or landscaping.
Seal or cap any disused junctions in accordance with Sydney Water’s guidance

Because Zaoud Plumbing is accredited and has experience across all related sewer works (encasement, sideline, junctions), we provide end-to-end management of diversions in context of your full project.

Cost Drivers & Timeline

Key Cost Influencers

Depth and location of the existing sewer main
Material and diameter of the sewer main (PVC, VC, ductile iron, etc.)
Soil conditions – rock, groundwater, hard strata, collapsed backfill
Accessibility — tight sites, adjacent structures, limited working room
Safety and shoring requirements for deep trenches
Volume of backfill and reinstatement work
Permit, inspection, design or coordination overheads

Typical Timeline

On-site work: typically 1 day for a standard cut-in junction

We aim to deliver efficient, effective cut-in junction work with minimal delay and high compliance.

Why Choose Zaoud Plumbing for Your Cut-in Junction

Sydney Water Accredited Constructor – fully qualified to carry out minor sewer works, including cut-in junctions.
One-stop sewer infrastructure provider – since we also provide pegouts, encasements, sidelines, diversions, and subdivision plumbing, we manage your whole sewer scope seamlessly.
Highly skilled team & equipment – we bring modern cutting, safe excavation, accurate alignment and quality control to each junction.
Full compliance & documentation – as-constructed plans and certification.
